本文主要介绍PhysX场景查询的一些内部机制和使用方法。
PhysX物理引擎系列记录了在实际项目中使用Nvdia PhysX 3.4物理引擎（Code, Doc）的一些经验，有不少对官方资料的补充。

Warm-up

A Scene in PhysX engine is a container of objects in a hierachical manner.

---
title: Scene Hierachy
---
classDiagram
direction LR

class world
class scene {
    Flags
    Gravity
    ...
}
class actor {
    ActorFlags
    Name
    GlobalPose
    ...
}
class shape {
    Flags
    GeometryType
    LocalPose
    QueryFilterData
    SimulationFilterData
    ...
}
class geometry {
    ...
}
class material {
    friction
    restitution
    damping
}

world "1"*.. "N"scene
scene "1"*.. "N"actor
actor "1"*.. "N"shape
shape o--geometry
shape o--material

There are only position and rotation in GlobalPose and LocalPose, no “scale”. Scale only reflects on geometry’s actual size.

Scene Query Basics

Three kinds of scene query:

raycast
sweep
overlap

In general, each SceneQuery traverses a culling structure containing the scene objects, performs a precise test using the GeometryQuery functions, and accumulates the results.

You can customize filtering logic via prefilter and postfilter.

flowchart LR

BP(Broad Phase) --> prefilter --> MP(Mid phase) --> NP(Narrow Phase) --> postfilter

Broad phase traverses the global scene spatial partitioning structure to find the candidates for mid and narrow phases.
midphase traverses the triangle mesh and heightfield internal culling structures, to find a smaller subset of the triangles in a mesh reported by the broad phase.
Narrow phase performs exact intersection tests
Pre-filtering happens before midphase and narrow phase and allows shapes to be efficiently discarded before the potentially expensive exact collision test.
Post-filtering happens after the narrow phase test and can therefore use the results of the test (such as PxRaycastHit.position) to determine whether a hit should be discarded or not.

More on Traversal

A scene uses two query structures, one for “static” objects (PxRigidStatic), one for “dynamic” objects (PxRigidBody). Each structure can use different culling algorithms, see PxPruningStructureType.

PxPruningStructureType	Explaination
eNone	Based on grid. Full rebuild when changed.
eDYNAMIC_AABB_TREE	Based on tree. Full rebuild when changed. Only choose this if all static actors in your scene are not modified after initialization.
eSTATIC_AABB_TREE	Based on grid and tree. Incremental rebuild when changed, unless by force. Choose this if frequently add/remove geometry, at the cost of higher memory

More on Filtering

To make custom filtering logic works, there are 3 steps.

Attach data for filtering on the shape (a.k.a. QueryFilterData)
Define custom filtering logic
Attach filter in your scene query

Step 1. Attach data for filtering on the shape

Attach PxFilterData to each shape’s QueryFilterData. It has four 32bit words to hold custom data, e.g., we use word0 as layer of this shape. Here is an example:

PxShape* shape = PxRigidActorExt::createExclusiveShape(*pxActor, PxBoxGeometry(extV), *pxMaterial);
PxFilterData queryFilter;
queryFilter.word0 = layer;
shape->setQueryFilterData(queryFilter);

Step 2. Define custom filtering logic

Define callback function for prefilter and postfilter. See PxQueryFilterCallback. The logic is totally depend on yourself, just return PxQueryHitType to tell if this shape can pass.

PxQueryHitType	Explanation
eNONE	Shall not pass.
eTOUCH	Pass, but does not stop the raycast or sweep.
eBLOCK	Pass, but stop here.

Here is an example:

class PhysxQueryFilterCallback : public PxQueryFilterCallback
{
    public:
        PhysxQueryFilterCallback();
        PhysxQueryFilterCallback(bool isBlocking, bool includeTrigger);
        virtual PxQueryHitType::Enum preFilter(const PxFilterData& filterData, const PxShape* shape, const PxRigidActor* actor, PxHitFlags& queryFlags);
        virtual PxQueryHitType::Enum postFilter(const PxFilterData& filterData, const PxQueryHit& hit);

    private:
        PxQueryHitType::Enum m_HitType;
        bool m_IncludeTrigger;
};

PxQueryHitType::Enum PhysxQueryFilterCallback::preFilter(const PxFilterData& filterData, const PxShape* shape, const PxRigidActor* actor, PxHitFlags& queryFlags)
{
    bool isTrigger = shape->getFlags() & physx::PxShapeFlag::eTRIGGER_SHAPE;
    if (isTrigger && !m_IncludeTrigger) {
        return PxQueryHitType::eNONE;
    }

    PxFilterData shapefilterData = shape->getQueryFilterData();

    if (shapefilterData.word0 & filterData.word0 || shapefilterData.word1 & filterData.word1)
    {
        return m_HitType;
    }
    return PxQueryHitType::eNONE;
}

PxQueryHitType::Enum PhysxQueryFilterCallback::postFilter(const PxFilterData& filterData, const PxQueryHit& hit)
{
    const PxLocationHit& impactHit = static_cast<const PxLocationHit&>(hit);
    if (impactHit.distance > 0.0f)
        return m_HitType;

    return PxQueryHitType::eNONE;
}

Step 3. Attach filter in your scene query

PxQueryFilterData has two fields:

field	Explaination
PxQueryFlags	Supported flags are in `PxQueryFlag::Enums`, e.g. raise `ePREFILTER` means all shapes need to pass `prefilter` you defined.
PxFilterData	Has four 32bit words for you, e.g. use `word0` as the “layermask” of the query.

Raycast example

Here is an example of raycast (return multiple objects).

// save result and use it later
struct MyRaycastHitResult
{
    PhysXVec3 Position;
    PhysXVec3 Normal;
    float Distance;
    PhysXActor* Collider;
};
typedef PhysXArray<MyRaycastHitResult> MyRaycastHitResults;

// make sure "direction" is non-zero and normalized!
bool PhysXManager::MyRaycast(MyRaycastHitResults& hitResults, const PhysXVec3& startPos, const PhysXVec3& direction, float distance, unsigned int layerMask, bool includeTrigger)
{
    const PxU32 bufferSize = 256;
    PxRaycastHit hitBuffer[bufferSize];
    PxRaycastBuffer buf(hitBuffer, bufferSize);

    PxQueryFilterData filterData = PxQueryFilterData();
    filterData.flags |= PxQueryFlag::ePREFILTER | PxQueryFlag::ePOSTFILTER; // will call both prefilter and post filter
    filterData.data.word0 = 0;
    filterData.data.word1 = layerMask;
    PhysxQueryFilterCallback filterCallback(false, includeTrigger);

    bool status = m_pxScene->raycast(startPos, direction, distance, buf, PxHitFlag::eDEFAULT, filterData, &filterCallback, NULL);

    if (status)
    {
        hitResults.clear();
        for (PxU32 i = 0; i < buf.nbTouches; i++)
        {
            PxRaycastHit touch = buf.touches[i];
            MyRaycastHitResult hitResult;
            hitResult.Position = touch.position;
            hitResult.Normal = touch.normal;
            hitResult.Distance = touch.distance;
            hitResult.Collider = (PhysXActor*)touch.actor->userData;
            hitResults.push_back(hitResult);
        }
        if (buf.hasBlock) {
            MyRaycastHitResult hitResult;
            hitResult.Position = buf.block.position;
            hitResult.Normal = buf.block.normal;
            hitResult.Distance = buf.block.distance;
            hitResult.Collider = (PhysXActor*)buf.block.actor->userData;
            hitResults.push_back(hitResult);
        }
    }
    return status;
}

Overlap example

Here is an example of sphere overlap. Other geometries are similar.

// make sure radius is above zero!
bool PhysXManager::MySphereOverlap(PhysXRaycastHits& hitResults, float radius, const PhysXVec3& position, const PhysXQuat& rotation, unsigned int layerMask, bool includeTrigger) {
    const PxU32 bufferSize = 256;
    PxOverlapHit hitBuffer[bufferSize];
    PxOverlapBuffer buf(hitBuffer, bufferSize);

    PxQueryFilterData filterData = PxQueryFilterData();
    filterData.flags |= PxQueryFlag::ePREFILTER;// no postfilter logic since we SHOULD NOT EXAMINE DISTANCE in overlap query
    filterData.data.word0 = 0;
    filterData.data.word1 = layerMask;
    PhysxQueryFilterCallback filterCallback(false, includeTrigger);

    bool status = false;
    PxTransform trans(position, rotation);
    status = m_pxScene->overlap(PxSphereGeometry(radius), trans, buf, filterData, &filterCallback);
    if (status && buf.nbTouches > 0)
    {
        hitResults.clear();
        for (PxU32 i = 0; i < buf.nbTouches; i++)
        {
            PxOverlapHit hit = buf.touches[i];
            PhysXRaycastHit hitResult;
            hitResult.Collider = (PhysXActor*)hit.actor->userData;
            hitResults.push_back(hitResult);
        }
    }
    return status;
}

Golden Tips

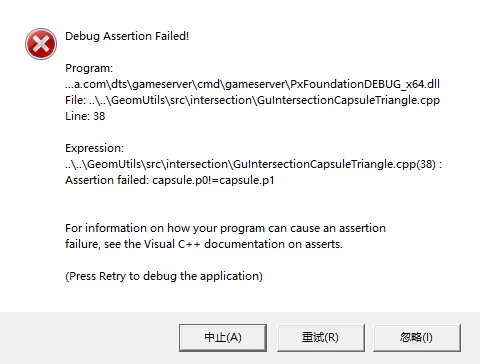

Make sure shape dimension and queryshape dimension have positive values, recommended minimum value is 1.192092896e-07F. Or random crash may happen.
In Raycast or Sweep, make sure direction is normalized and not zero. Or random crash may happen.
In Overlap, do not check hit.distance (it’s always zero) in post-filtering logic.
